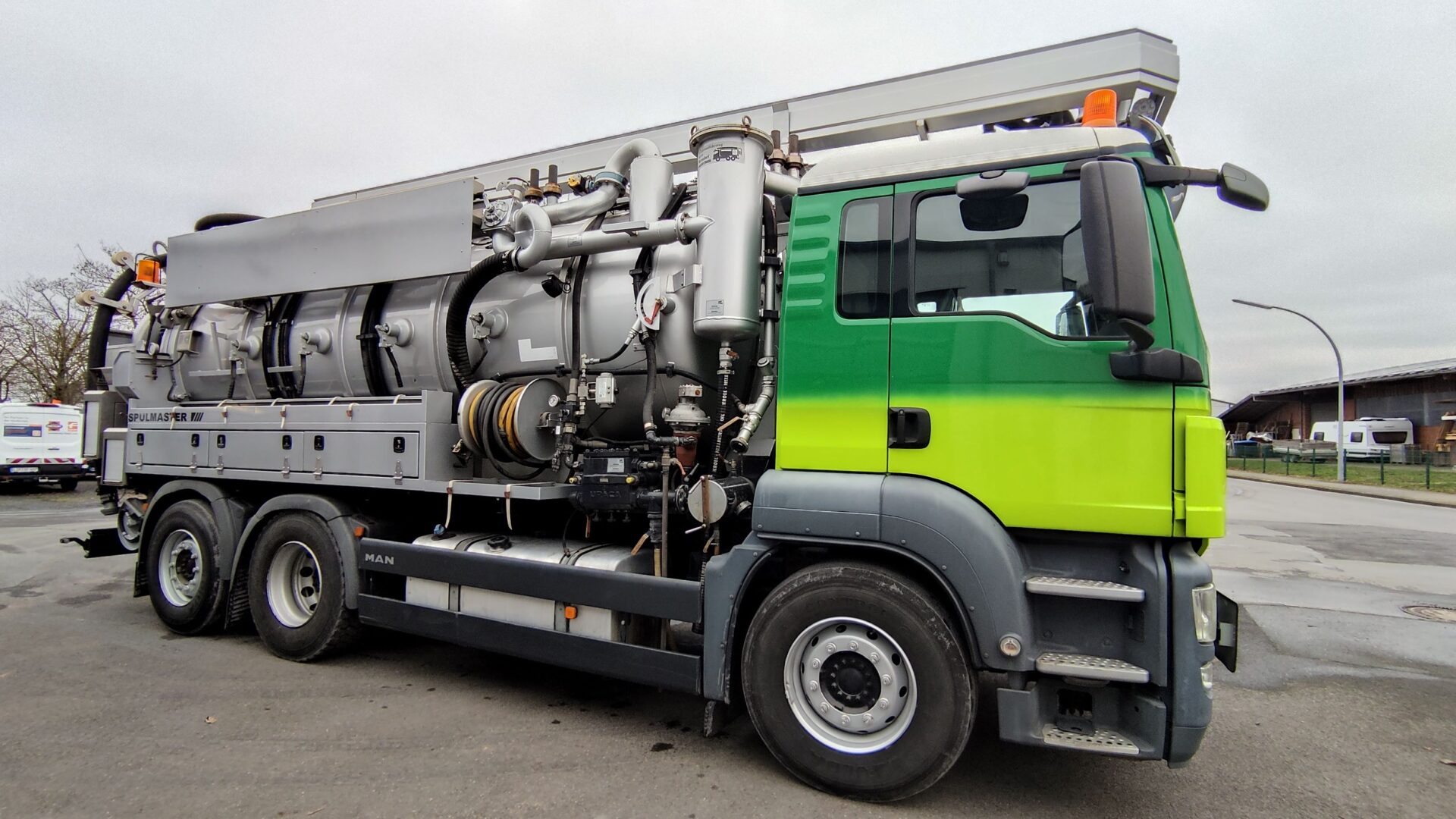

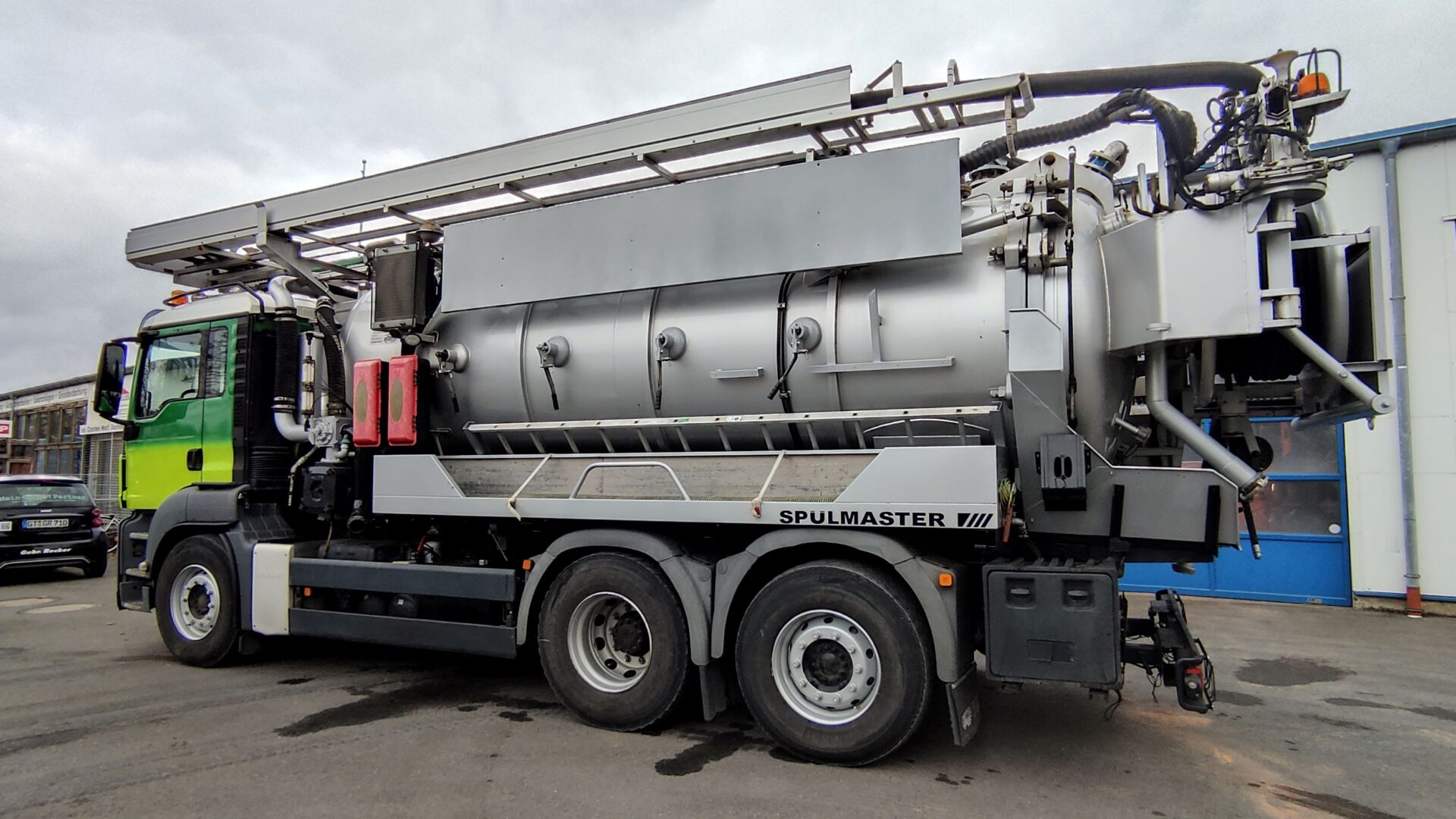

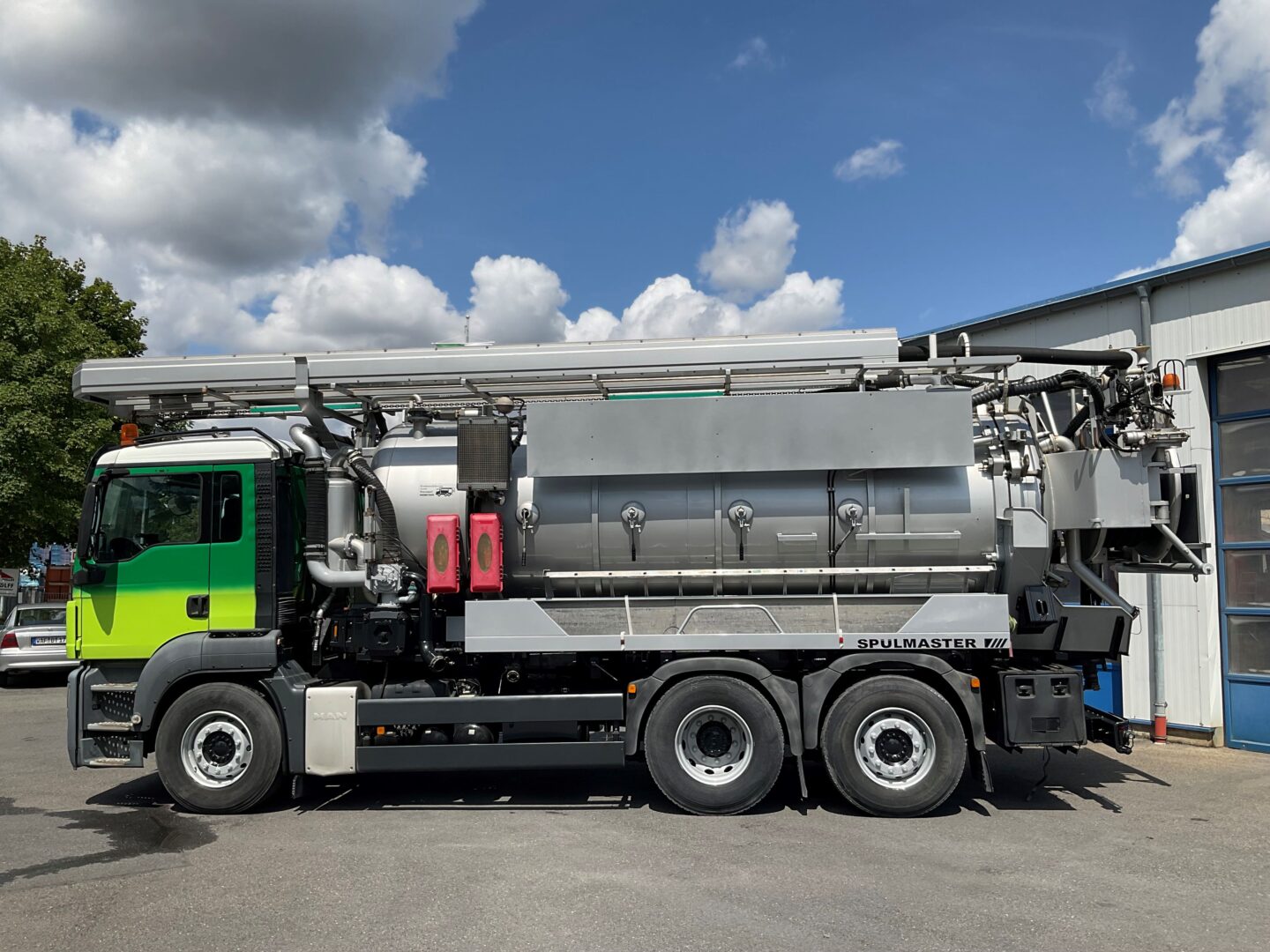

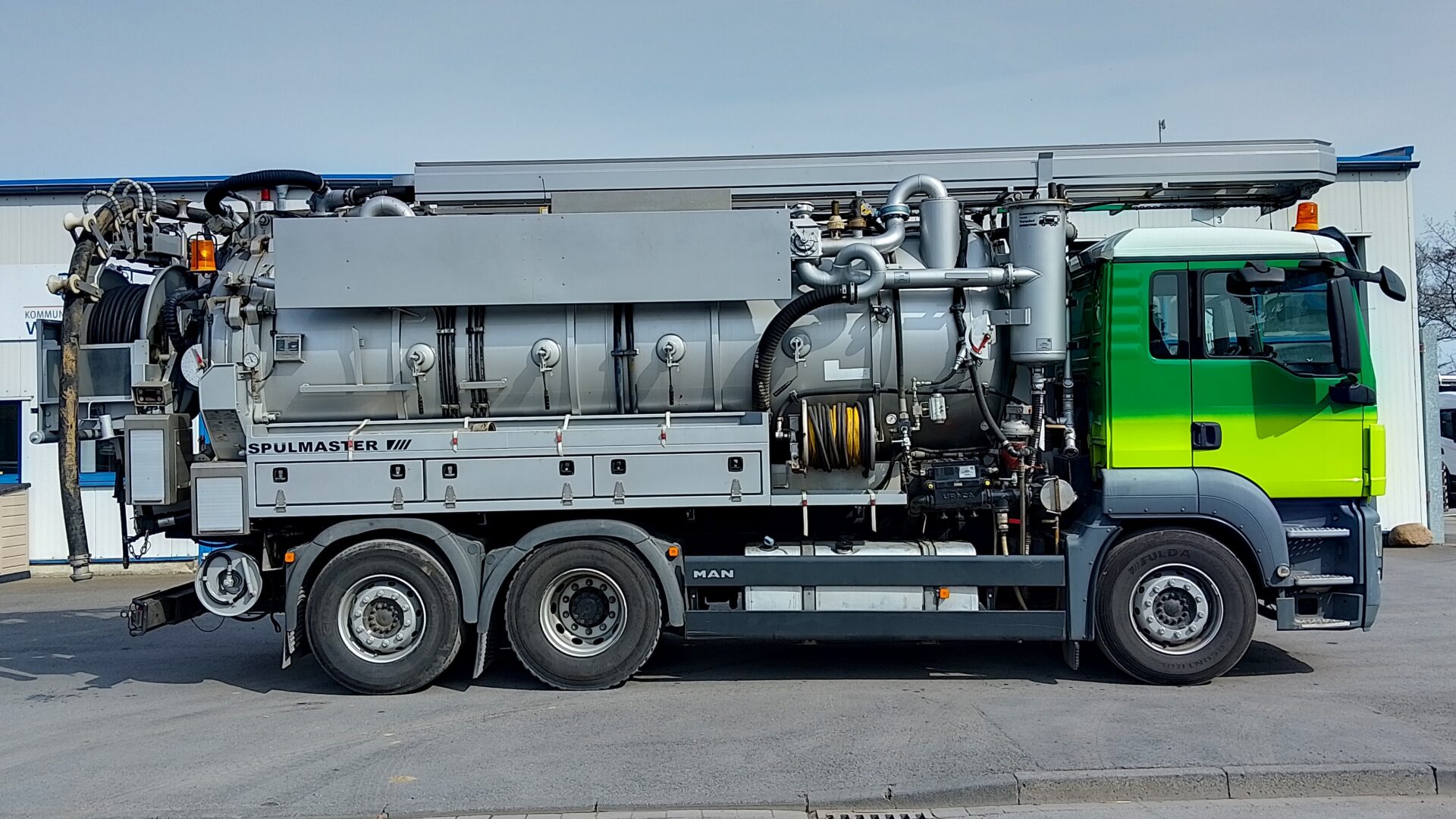

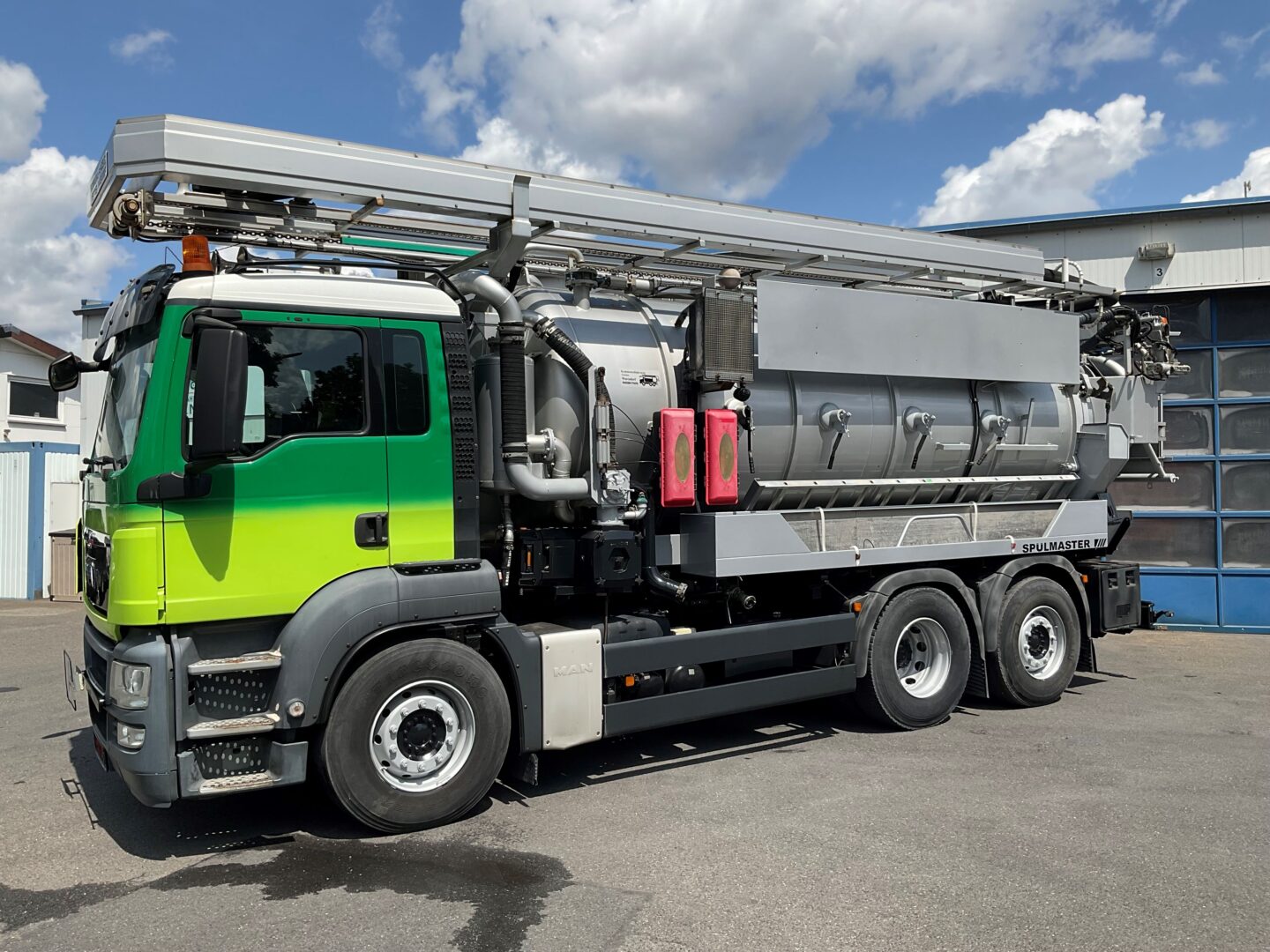

technical details vehicle | ||
| manufacturer: | MAN Nutzfahrzeuge | |
| type: | 26.540 6x2/4 | |
| year of manufacturing: | 2013 | |
| wheelbase: | ca. 3.900 mm + ca. 1.350 mm | |
| admissible total weight: | 26.000 kg | |
| tare: | ca. 17.400 kg | |
| mileage: | ca. 300.500 km | |
| exhaust emission standard: | Euro 5 | |
| axes: | 3 | |
| tractable axes: | 2 | |
| vehicle height: | 3.750 mm | |
| coupling device: | ||

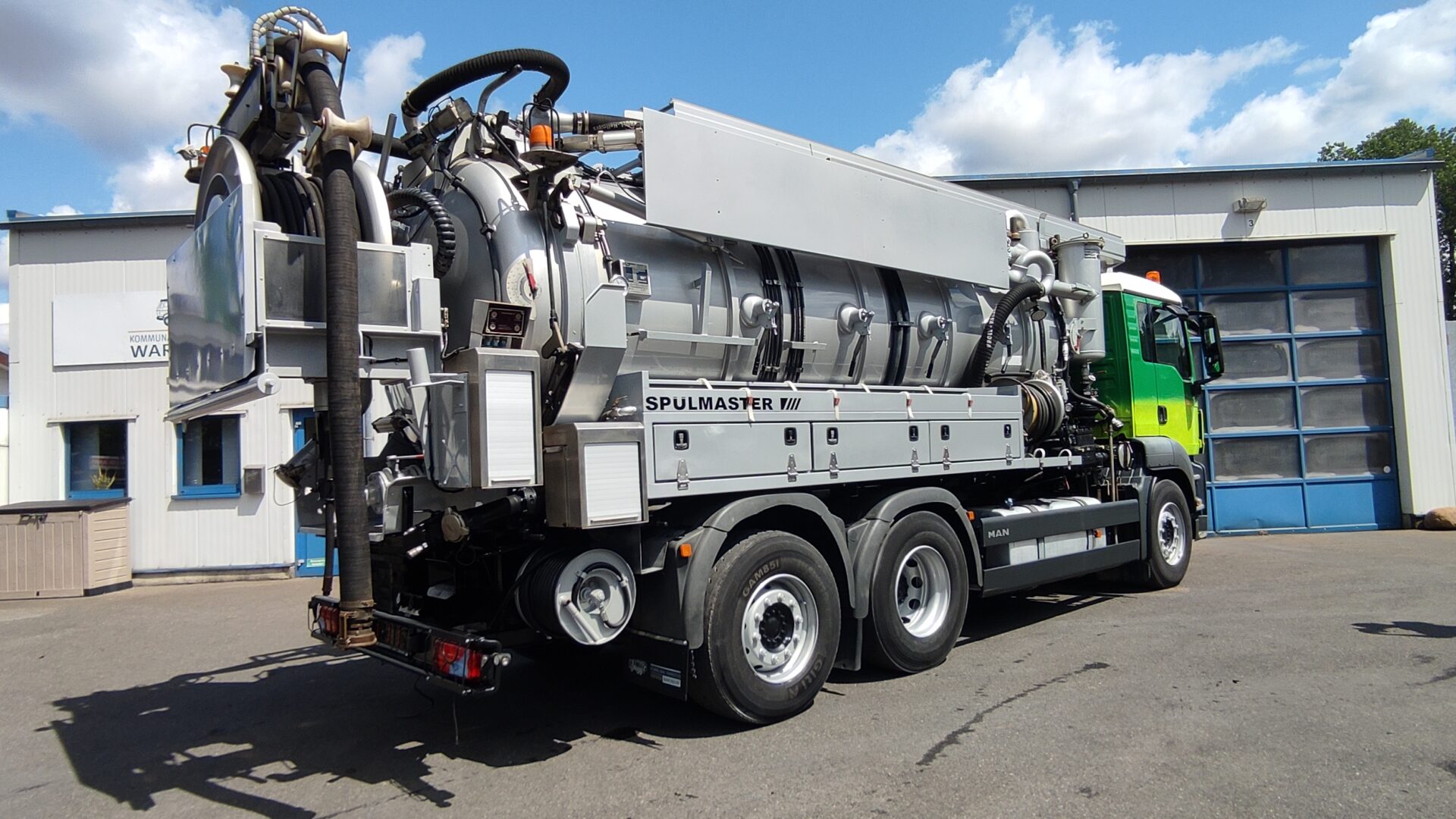

technical details equipment | ||
| manufacturer: | Kroll | |
| vehicle body type: | suction and rinsing car | |
| size: | 14.000 l | |
| dangerous goods: | ||
| material tank: | Stahlbehälter S 355 J2 +N | |
| forcer: | ||
| size waterchamber: | ca. 3.300l - ca. 5.500 l - ca. 7.700 l - ca. 9.900 l | |
| size of sludge chamber: | ca. 10.700 - ca. 8.500 l - ca. 6.300 l - ca. 4.100 l | |

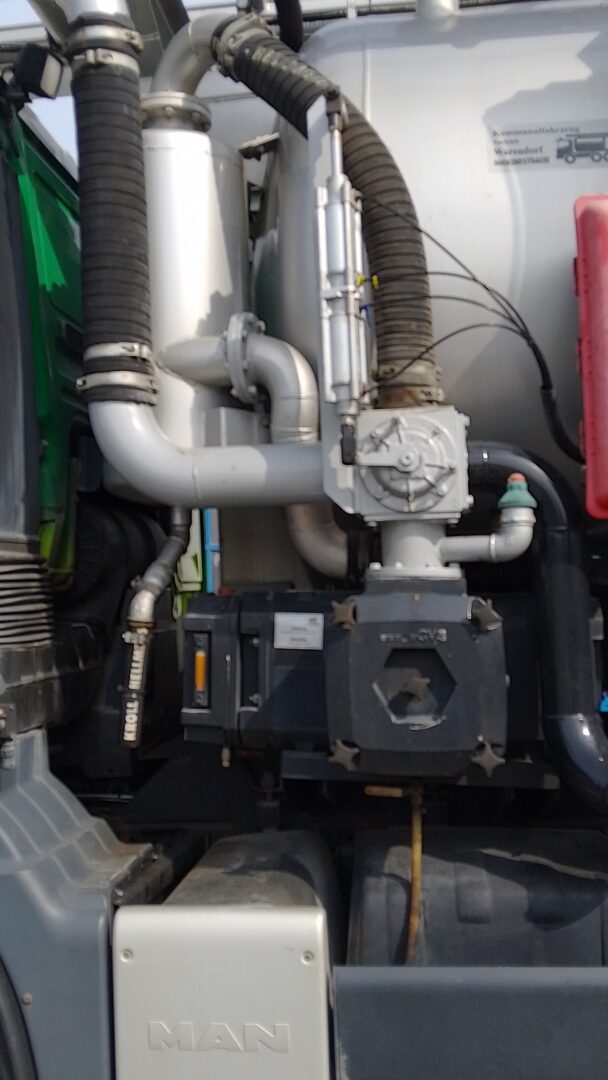

| vacuum pump: | CVS VacuStar 1600 - 1.550 cbm/h | |
| suction hose cassette: | DN 100 bzw. 4 Zoll/Inch " - ca. 22 m | |

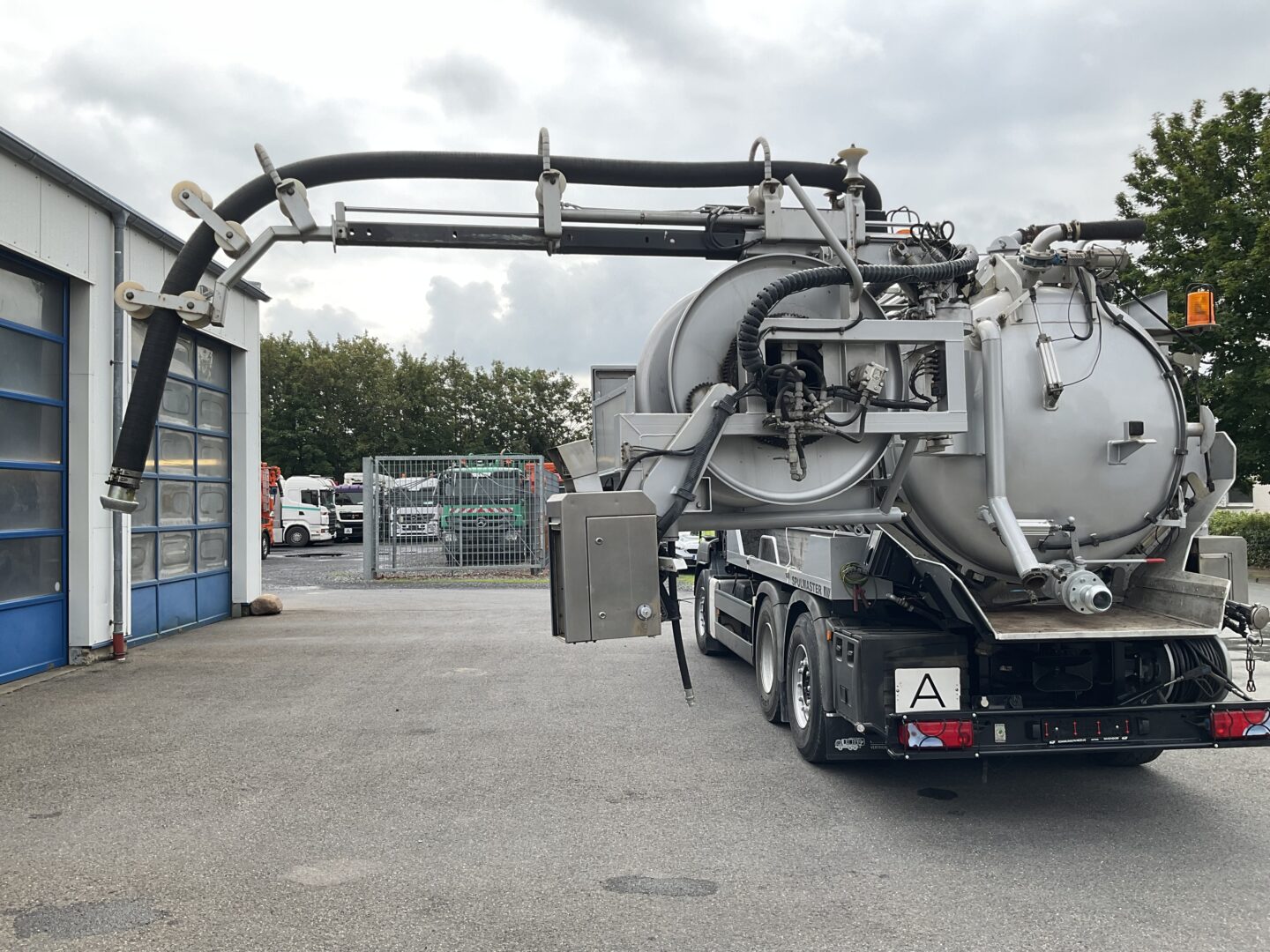

| suction hose jib: | DN 100 bzw. 4 Zoll/Inch " - ca. 4.600 mm | |

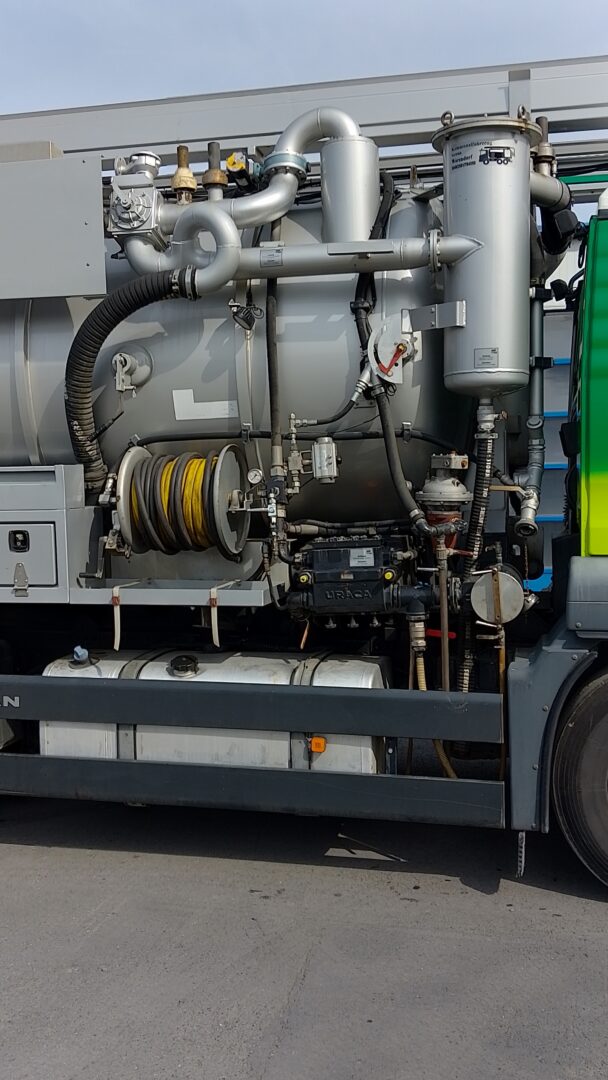

| high pressure pump: | Uraca KD 718-G/60 - ca. 170 bar bzw. ca. 2.466 psi - ca. 330 l/min | |
| flush hose: | DN 25 bzw. 1 Zoll/Inch " - ca. 240 m | |
| flush hose: | DN 13 bzw. 1⁄2 Zoll/Inch " - ca. 80 m | |

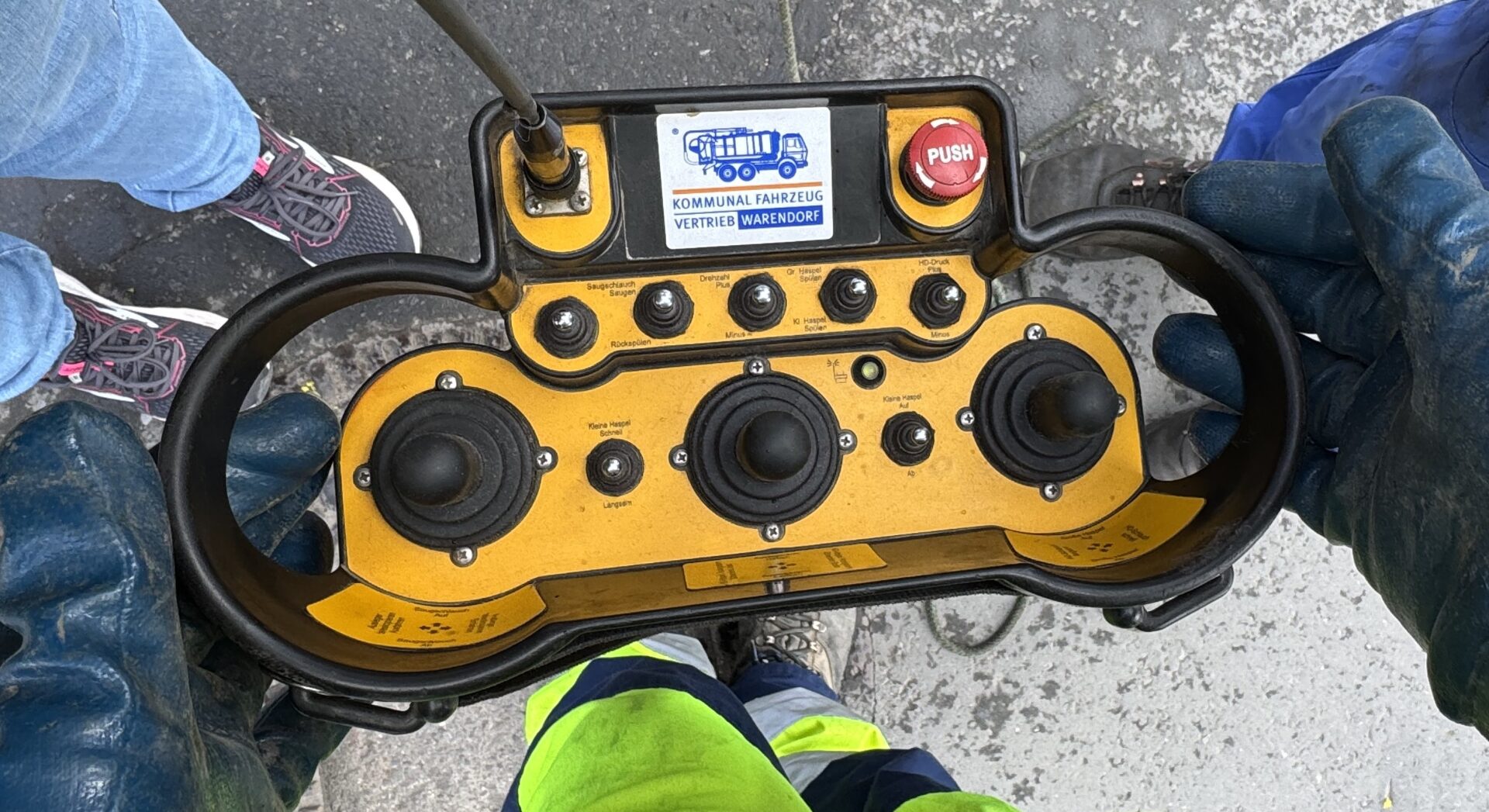

| radio control: | ||
| secondary drive: | ||
